Delegate Unit Battery Charging

The DU-111-02 Delegate Unit uses an industry standard lead-acid battery as power source. Properly maintained it will provide years of continuous use. Close Talk Conference System currently offers two charging solutions, the cost effective DU-110-45 cord charger and the combined charger and transportation trolley CT-10.

Use the CT-10 equipment calculator to easily find the right trolley configuration for any number of delegate units.

CT-10 - Delegate Unit Charger Trolley

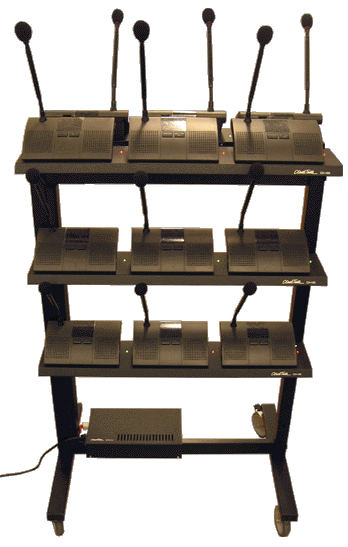

CT-10The CT-10 is a combined battery charger and transportation trolley for the DU-111-02 Delegate Unit and can hold up to 24 units. The sturdy frame and wheels provides safe transportation and storage.

Using the CT-10, any conference system size can be setup and removed in minutes. The trolley size makes it easy to roll around in the conference room using a suitable wheel size to provide easy passing over thresholds.

Wheel locks are provided for safe storage.

The Delegate Unit holders have built-in battery chargers with automatic connection, no need for a manual charger cable connector insertion.

Easy operation, simply place the Delegate Unit's in their holders, roll the trolley to the storage room and plug it in to mains power. Charging is controlled automatically.

Each holder has an individual charging status indicator clearly showing the OFF, CHARGING and READY states.

Charging time is typically 10 hours for a fully discharged battery (see data in full product catalogue).

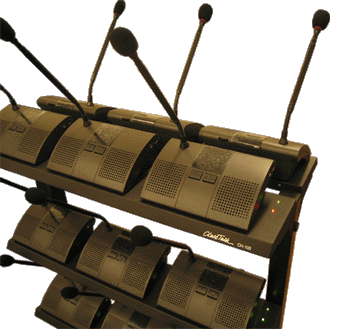

CT-10 delegates profileUnits can safely be left in the charger during storage, making them ever ready for the longest of meetings.

CT-10 can be equipped to suit any installation. The trolley supports up to eight CH-103 Charger Holders and one CTPS-101 Power Supply which are ordered individually.

Each charging holder is connected to the power supply at the bottom of the frame using a simple, low voltage, two wire cable.

Power supply is connected using a regular power cord for easy operation, simply plug in to mains power and turn on to start charging.

Easy to assemble and can be upgraded later with more charger holders.

Compact design saves storage space.

Download full product catalogue and assembly instructions in PDF format.

Delegate Unit Support
All delegate unit’s carrying the “Trolley and tray battery charging capable”-label is compatible with the CT-10. For older delegate unit's not carrying this label, an upgrade kit is available. Download upgrade installation manual here.

Note:
Delegate unit’s shipped early fall 2008 carrying the “Trolley and tray battery charging capable” label may need a battery cover screw update. The correct battery cover screw is an Allen/Hex-key, non-corrosive type, early unit's where shipped with a regular Phillips/Pozidriv, cross-pattern, zinc treated screw which will need replacement before using the CT-10.

Ordering:
Order code: CT-10                           CE logo       FCC logo      ROhS logo

Included in delivery:

Please note!
The order code CT-10 is only the bare trolley frame, a complete trolley consists of one CT-10 Charger Trolley frame, order code CT-10, up to eight CH-103 Charger Holder's and one CTPS-101 Power Supply which are ordered individually to suit the installation. Use the tool below to calculate the required number of products.

CT-10 Equipment Calculator:

Enter the desired number of Delegate Units in the leftmost field below and click Calculate to show the required products.

Number of                            CT-10                          CTPS-101                      CH-103
Delegate Units:                     Trolley Frames:           Power Supplies:             Chg. Holders:
                           pcs.         pcs.            pcs.






CH-103 - Charger Holder

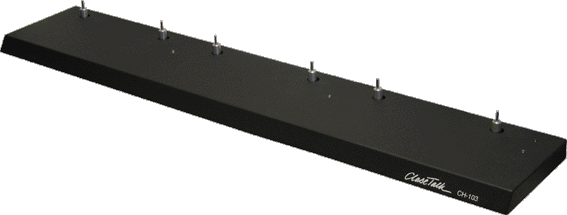

CH-103 profile

CH-103 is a fully automatic battery charger for the DU-111-02 Delegate Unit. With a three unit capacity and active charging control, keeping the Close Talk Conference System ready for action is now easier than ever.

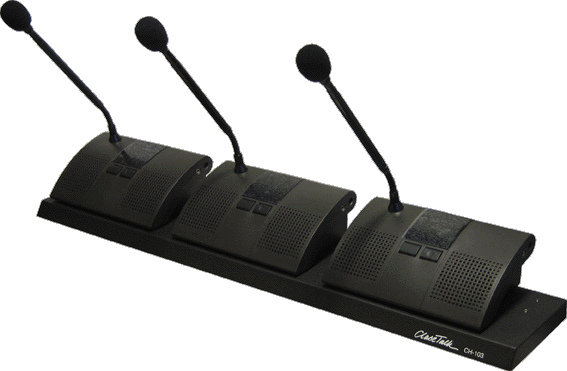

CH-103 with delegates profile

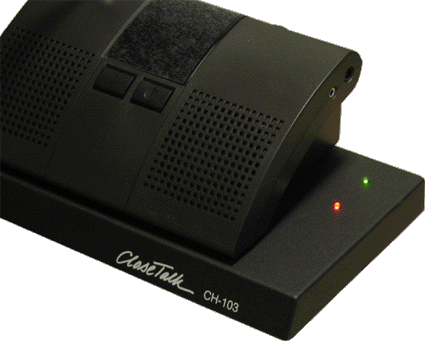

CH-103 delegate detailsThe CH-103 removes the need to manually connect each unit to a charger using a connector, simply place the delegate unit in it’s holder and charging starts automatically.

Charging is actively controlled to minimize charging time while preserving maximum battery life and is designed for stand-by use, supporting continuous charging.

Charging status indicators shows the OFF, CHARGING and DONE states. When charging is ready, simply lift the unit out of it’s holder and start using. CH-103 is powered by the CTPS-101 Power Supply using simple, quick-connect cable terminals.

Although primarily designed for use with the CT-10 Charger Trolley, the unit can just as easily be mounted on a shelve, a wall, etc. using the supplied brackets.

Download full product catalogue and assembly instructions in PDF format.

Delegate Unit Support
All delegate unit’s carrying the “Trolley and tray battery charging capable”-label is compatible with the CH-103. For older delegate unit's not carrying this label, an upgrade kit is available. Download upgrade installation manual here.

Note:
Delegate unit’s shipped early fall 2008 carrying the “Trolley and tray battery charging capable”-label may need a battery cover screw update. The correct battery cover screw is an Allen/Hex-key, non-corrosive type, early unit's where shipped with a regular Phillips/PoziDrive, cross-pattern, zinc treated screw which will need replacement before using the CT-10.

Order code: CH-103                        CE logo       FCC logo      ROhS logo

Included in delivery:




CTPS-101 - Charger Trolley Power Supply

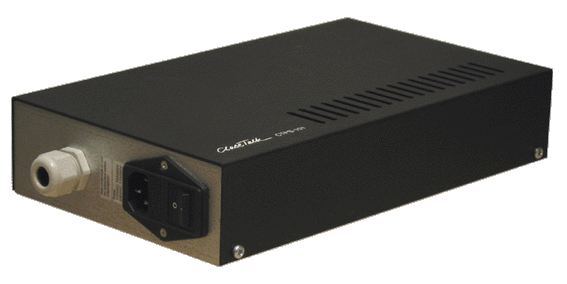

CTPS-101 Profile

CTPS-101 is a high capacity power supply designed to provide power to the CH-103 Charger Holder unit. At 100W output power it can supply up to eight CH-103 directly.

Using a sturdy steel box, it is intended for quick and safe mounting on the CT-10 Charger Trolley frame but can just as easily be used stand-alone in applications where the trolley is not needed.

Completely silent operation using fan-less box self ventilation.

Easy installation with screw-less low voltage connectors for up to eight units.

Easy operation, plug in and turn on, no settings required.

Mains voltage range selectable by internal switch.

Download full product catalogue and assembly instructions in PDF format.

Order code: CTPS-101                          CE logo       FCC logo      ROhS logo

Included in delivery:




Delegate Unit Cord Charger

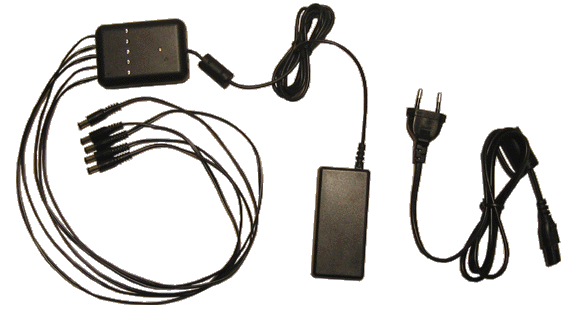

DC-110-45

Features:

Order code: DC-110-45                            CE logo       FCC logo      ROhS logo

Specify the required mains plug type when ordering. USA, UK, CHINA/AUSTRALIA and EU standards generally available. Download full product catalogue for more detailed information.
